Description

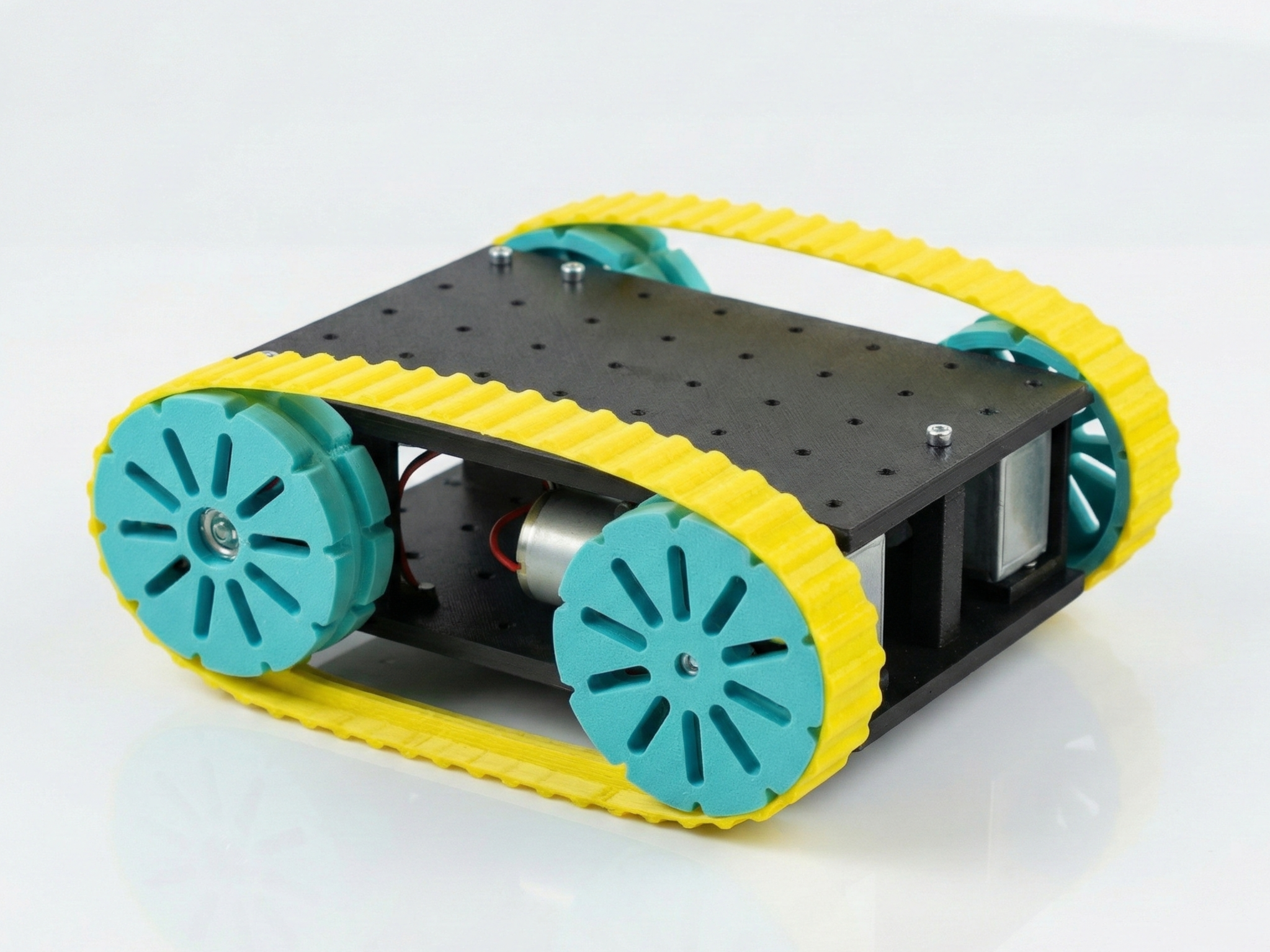

This is a fully 3D-printable modular chassis designed in accordance with Open Robotic Platform (ORP) standards, utilizing the signature 20mm grid system for universal part compatibility. The assembly includes tracks designed to be printed in TPU for optimal grip and durability. Key Features: - Motor Compatibility: Optimized for JGY370 DC motors. Because it follows ORP design rules, you can easily swap the motor holders to accommodate different power plants. - Structural Versatility: The internal connectors can be replaced or modified to adjust the vertical clearance between the plates, providing more space for batteries or controllers. - Hardware: Uses standard 608 bearings and M8 screws to mount the wheels. - Integrated Design: The front bearing holders serve a dual purpose, acting as structural connectors to reinforce the front of the robot. Note on Upload: As there is currently no dedicated category for full robotic assemblies, this design is placed in the Plates category. The modular nature of the ORP system allows these components to be used individually or combined with other library parts to create custom configurations.
